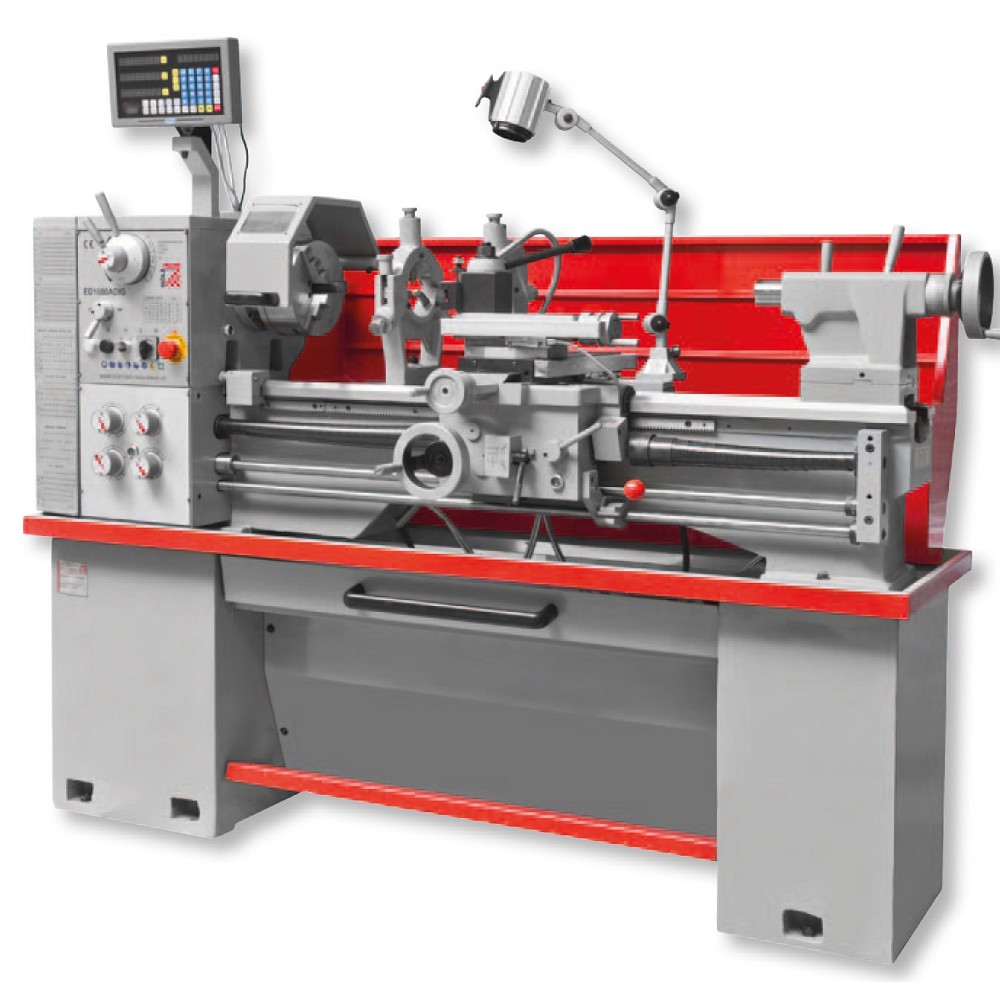

Holzmann metal turning lathe ED1080A DIG

HOLZMANN
Preview: ED1080A_DIG Preview: ED1080A_DIG Preview: ED1080A_DIG Preview: ED1080A_DIG Preview: ED1080A_DIG Preview: ED1080A_DIG Preview: ED1080A_DIG
ED1080A_DIG
ED1080A_DIG
ED1080A_DIG
ED1080A_DIG
ED1080A_DIG
ED1080A_DIG
ED1080A_DIG

€7,399.00 * €7,999.00 * (7.5% Saved)

Prices incl. VAT plus shipping costs

Ready to ship today,
Delivery time appr. 1-3 workdays

  • Order number: ED1080A_DIG
Description Evaluations 0
Description
motor data motor power s1 in W 2,2 kW voltage 400V / 3 / 50Hz... more
Close menu
Product information "Holzmann metal turning lathe ED1080A DIG"
motor data
  • motor power s1 in W 2,2 kW
  • voltage 400V / 3 / 50Hz
turning machines
  • tailstock cone MK/MT 4
  • distance between centers in mm 1080
  • center height in mm 200
  • max. swing over bed in mm 400
  • max. swing over cross slide in mm 250
  • max. swing in gap in mm 520
  • lathe spindle speed in min-1 65-1810
  • spindle bore in mm 52
  • spindle nose mount MK/MT6
  • carriage travel in mm 1080
  • cross slide travel in mm 1250
  • compound slide travel in mm 210
  • tailstock sleeve travel 115
  • range of metric threads in mm/r 0,4-7
  • range of inch threads 4-60 TPI
  • max. tool holder cross-section 20x20 mm
  • longitudinal feed 0,0527-1,2912 mm
  • cross feed 0,011-0,276 mm
weight
  • gross weight in kg 750
  • net weight in kg 630
  • 3-axis DRO mounted
  • ideal for tool manufacturing, various productions or educational institutions
  • exceptionally wide spindle bore (Ø 52mm) for processing large shaft diameters
  • foot brake ensures maximal working safety and cuts down nonproductive time
  • induction-hardened and precision ground prismatic bed way guides made of
  • stabilized cast iron, assuring max. accuracy for a lifetime
  • removable bridge enables workpieces with diameters up to 520 mm
  • Precision cut gears and vibration inhibiting cast iron machine bed ensure high turning accuracy
