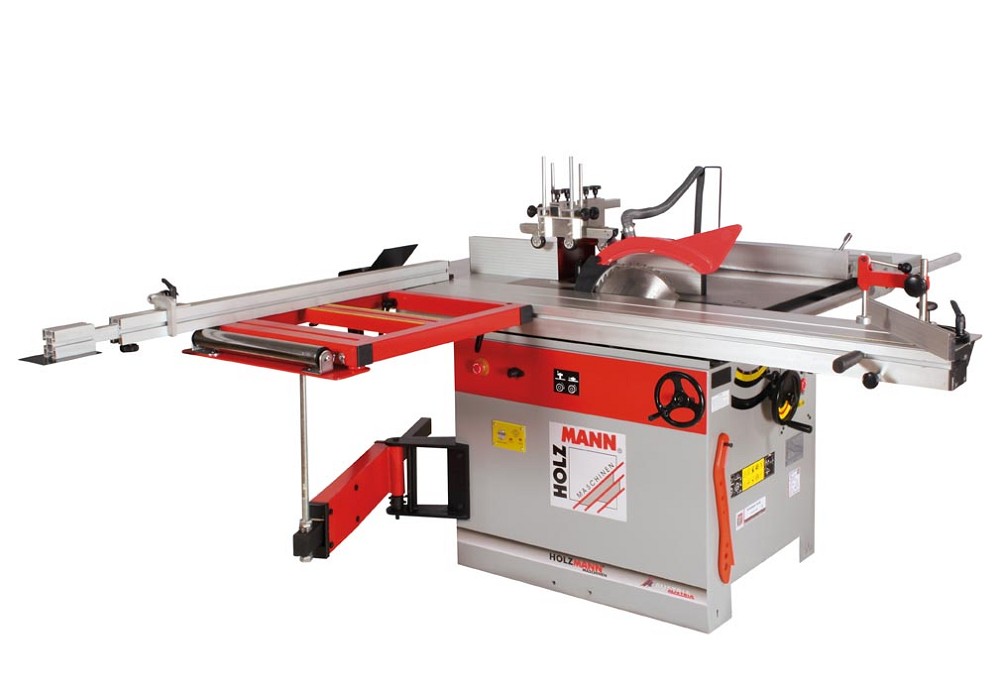

Holzmann circular saw - spindle shaper combination KF 315VF-2000
€3,599.00 * €4,399.00 * (18.19% Saved)
Prices incl. VAT plus shipping costs
Ready to ship today,
Delivery time appr. 1-3 workdays
- Order number: KF315VF-2000_400V
motor data motor power s1 in W 3800 / 2800 motor power... more
Product information "Holzmann circular saw - spindle shaper combination KF 315VF-2000"
motor data
- motor power s1 in W 3800 / 2800
- motor power s6 in W 5100 / 4000
- voltage 230V or 400V
measurements
- outrigger table in mm 750x590
- sliding table in mm 2000x270
- suction port in mm 2x100
- table widening in mm 860x440 / 500x450
- table height in mm 850
- table size in mm 860x890
cutting performance
- max. trimming in mm 2200
- max. cutting height 90° in mm 100
- max. cutting height 45° in mm 80
- max. cutting width at parallel fence in mm 1330
milling and drilling
- max. tool diameter above table 200
- mitre fence in mm 360x120
- table opening in mm 190
- max. tool diameter below table in mm 180
- max. clamping height in mm 100
- spindle stroke in mm 100
- milling spindle speed in min-1 1800/3000/6000/9000
- milling spindle diameter in mm 30
circular saws
- sawblade in mm 315
- scoring sawblade in mm Ø100
- sawblade speed in min-1 4500
- scoring unit speed in min-1 8500
weight
- gross weight in kg 425
- net weight in kg 310
packaging
- packaging length in mm 990
- packaging width in mm 825
- packaging height in mm 1.035
general data
- EAN code 9120039902876
- The KF 315VF-2000 impresses with its cleanest workmanship of highest value. This circular saw - spindle shaper combination manages cutting of plates with very big dimensions.
- back extension table and rip fence guide bar can be clap ped down fast and with ease
- solid and smoothly running rip fence with quick fastening clamp
- tiltable and height adjustable circular saw blade with scoring unit
- cast iron table with table extension in the back and left with support leg
- extractable mitre fence with worpiece end stop
- support roller at the outrigger table eases the work piece allocation
- XL cutting width at the rip fence with max. 1330mm
- eqipped with 2-piece scoring blade as standard

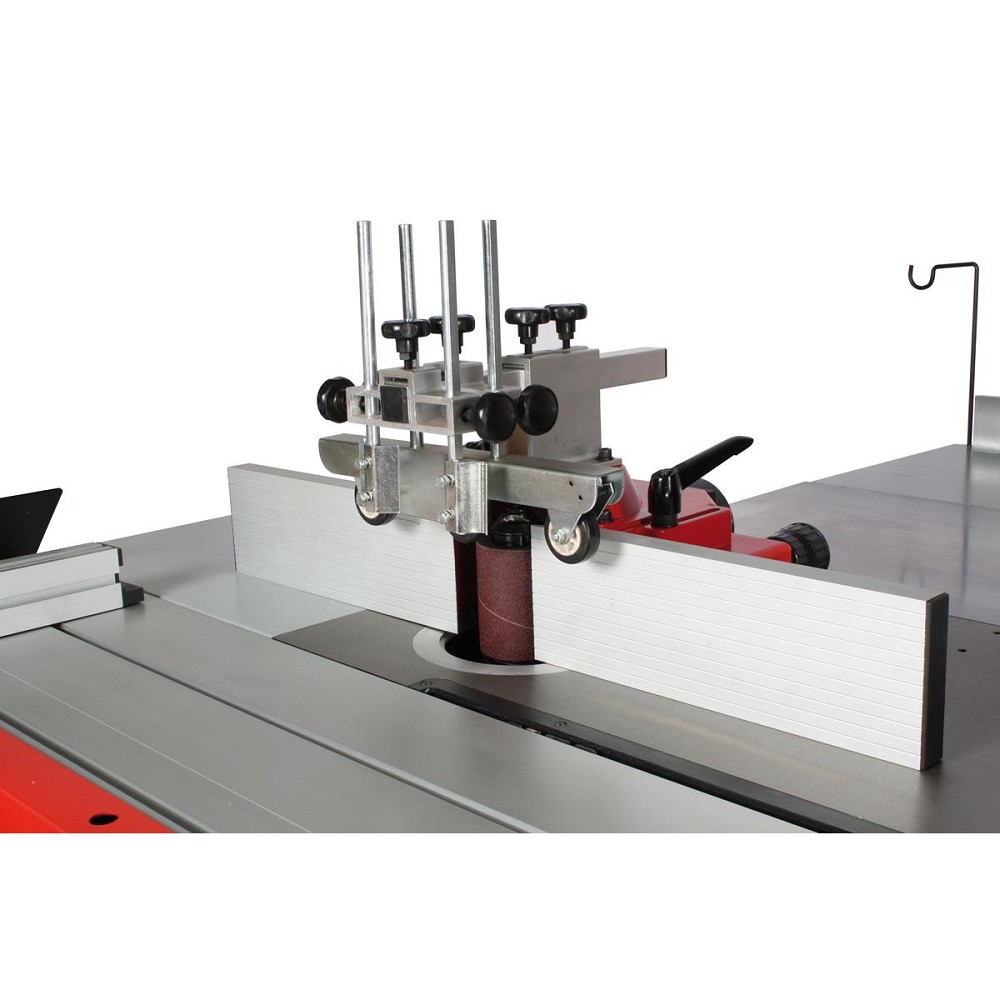

- high quality shaper hood with roller guides, protective plate and fine adjustable aluminium fences
- 4 spindle shaper speeds covering very large speed range (1800-9000rpm)
- electronical speed indication via LED’s
- max. tool diameter 200mm, handy and removable spindle adjustment wheel
- comes with sanding roller as standard, enabling sanding operation at 1800prm
included in delivery: scoring unit, 1pcs T.C.T. saw blade Ø315mm 1pcs T.C.T. scoring blade Ø100mm, mitre gauge, rip fence, telescopic fence
