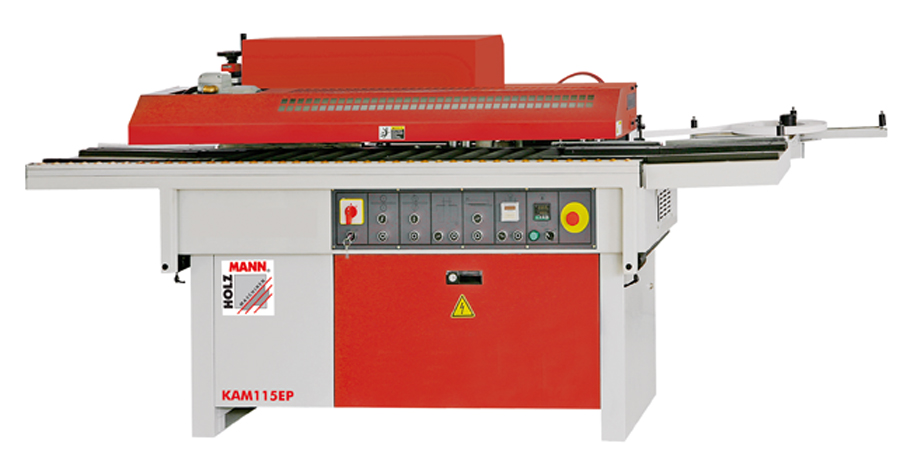

Holzmann edge banding machine KAM 115EP

€8,099.00 * €8,999.00 * (10% Saved)

Prices incl. VAT plus shipping costs

Delivery time 90 Workdays

  • KAM115EP_SIEMENS
        motor data motor power s1 in W 2740... more
Product information "Holzmann edge banding machine KAM 115EP"




motor data
  • motor power s1 in W 2740
  • feed speed 6.4 m/min

measurements
  • suction port in mm 100
  • table size in mm 2300x800
  • total dimensions in mm 2050x800x1070

workpiece measurements
  • min. workpiece length in mm 280
  • max. workpiece thickness in mm 45
  • min. workpiece thickness in mm 10
  • min. workpiece width in mm 90

edge banding
  • working temperature in °C 190-200
  • required air pressure in bar 7
  • edge width in mm 12-48
  • edge thickness in mm 0,4-3

weight
  • gross weight in kg 450
  • net weight in kg 400

packaging
  • packaging length in mm 1.690
  • packaging width in mm 760
  • packaging height in mm 1.060

general data
  • EAN code 9120039904801

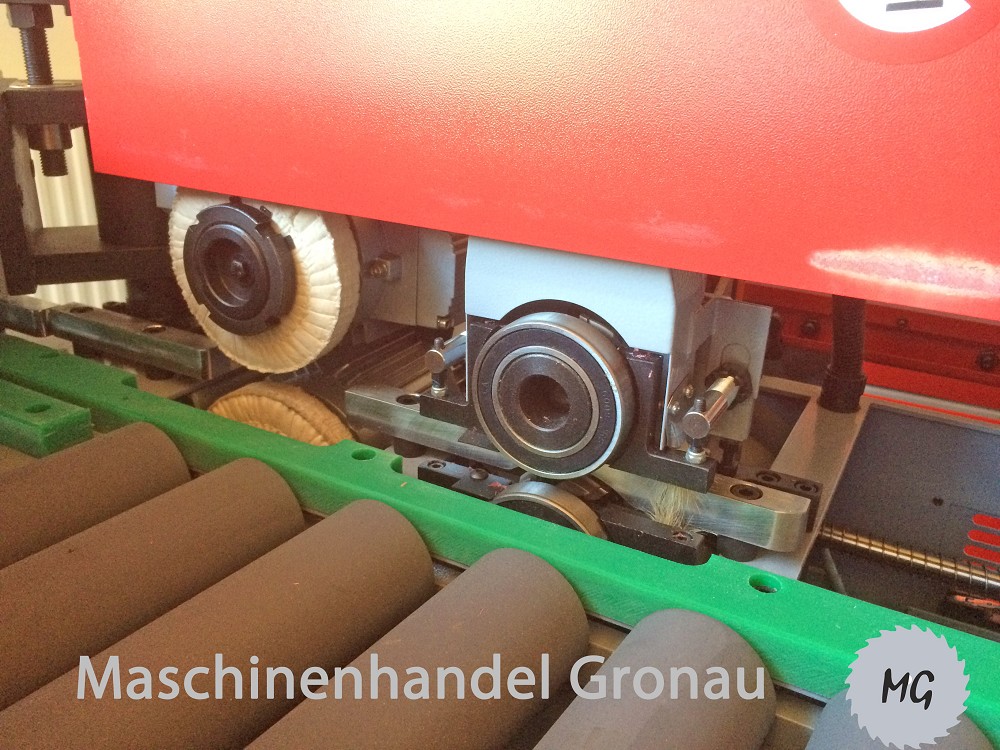

  • Automatic and precise glueing procedure as well as integrated double finishing R side as well as integrated end cutting unit and buffing unit within one workflow.

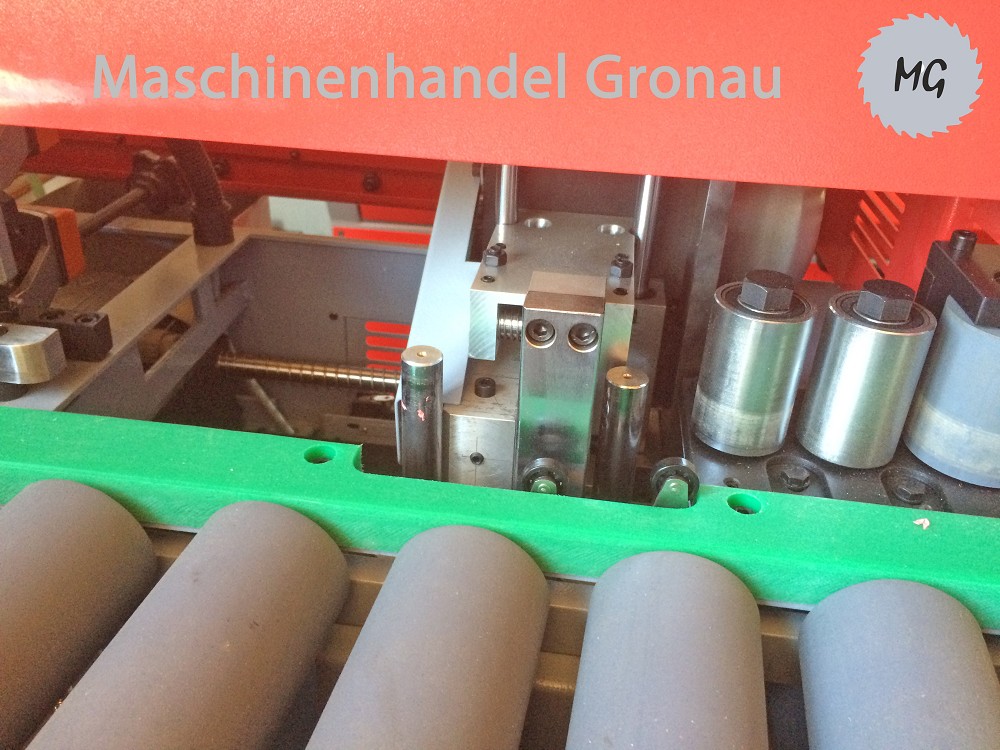

  • The machine profiles the egde by two trimming units. The profile knives can be adjusted after each use or replaced.
  • one-sided automatic edge banding machine
  • glue transfer directly to straight workpieces
  • stand by function (prevents to burn the glue

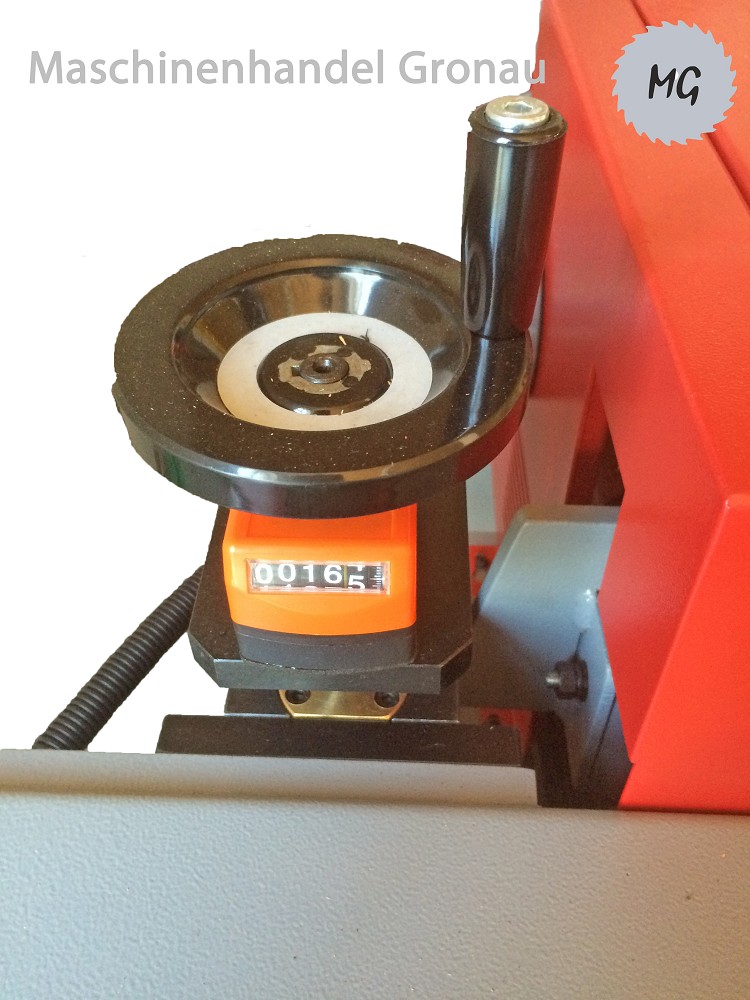

  • unit adjustment equipped with counter block for setting different edge types

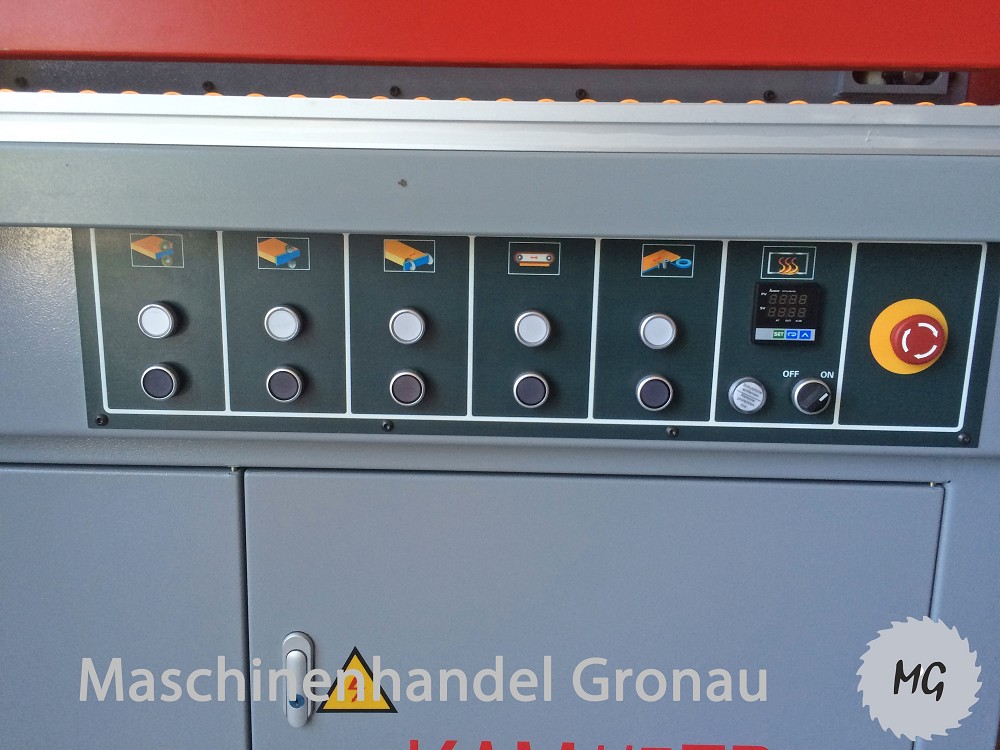

  • LCD display controls glue temperature adjustment
