Holzmann edge banding machine KAM 215EPS

HOLZMANN
Preview: KAM215EPS Preview: KAM215EPS Preview: KAM215EPS Preview: KAM215EPS Preview: KAM215EPS
KAM215EPS
KAM215EPS
KAM215EPS
KAM215EPS
KAM215EPS

€10,799.00 * €11,999.00 * (10% Saved)

Prices incl. VAT plus shipping costs

Delivery time 90 Workdays

  • Order number: KAM215EPS
Description Evaluations 0
Description
        motor data motor power s1 in W... more
Close menu
Product information "Holzmann edge banding machine KAM 215EPS"




motor data
  • motor power s1 in W 6150
  • feed speed 10.3
  • voltage 400V / 3x50hHz

measurements
  • total dimensions in mm 3130x1130x1340
  • suction port in mm Ø100

workpiece measurements
  • min. workpiece thickness in mm 10 - 50
  • min. workpiece length in mm 120
  • min. workpiece width in mm 80

circular saws
  • sawblade in mm Ø 104x22x3

edge banding
  • edge thickness in mm 0,4 - 3
  • required air pressure in bar 6

weight
  • net weight in kg 760
  • gross weight in kg 910

packaging
  • packaging height in mm 1.480
  • packaging width in mm 700
  • packaging length in mm 2.500

general data
  • EAN code 9120058372292

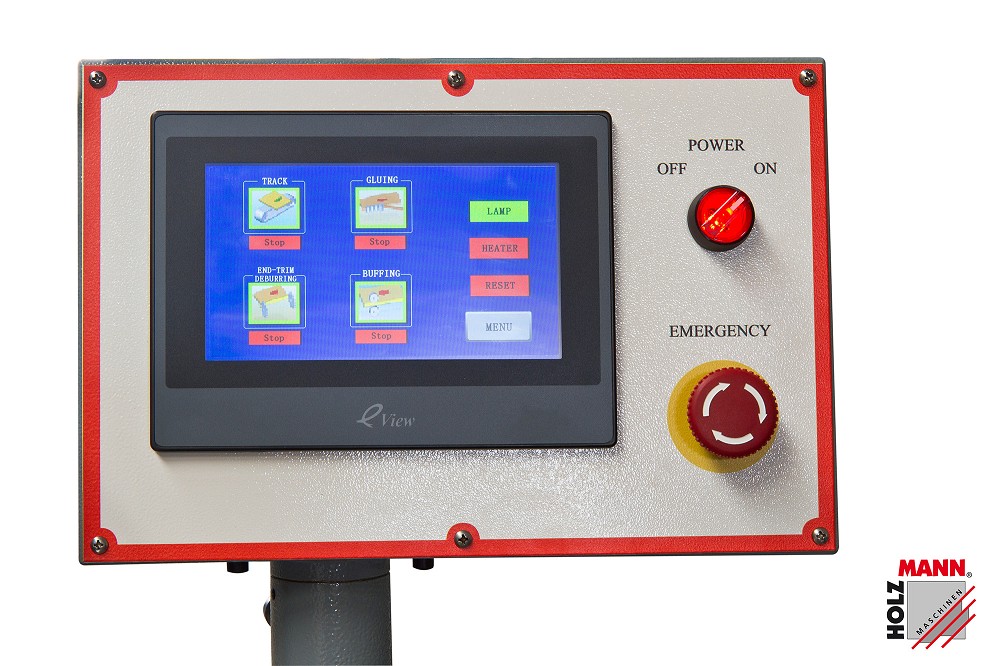

  • touchscreen Display
  • one-sided automatic edge banding machine
  • glue delivery directly to the workpieces
  • standby function (no burning of the glue)
  • Unit adjustment equipped with counter for setting different
  • kinds of edges
  • milling of the edge overhang (up / down) flush or with 2 mm radius
  • accurate cutting of the laminate (back / front) by cutting unit
  • straight surface scraping unit

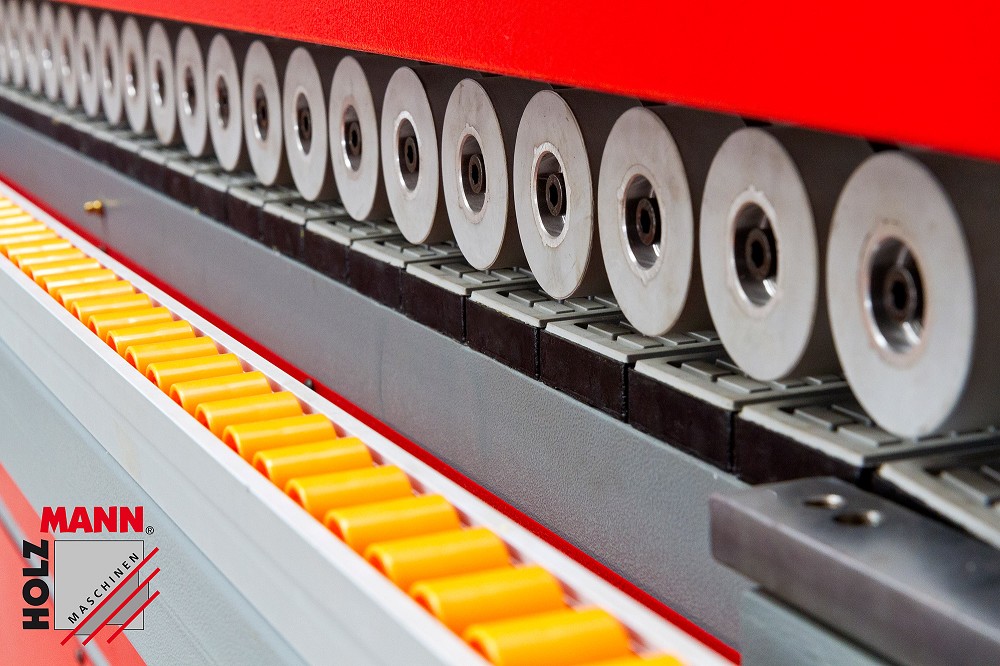

  • Pressure rollers ensure perfect connection between laminate
  • and workpiece
  • automatic and constant panel feed
  • adhesive temperature electronically adjustable at the touch panel
