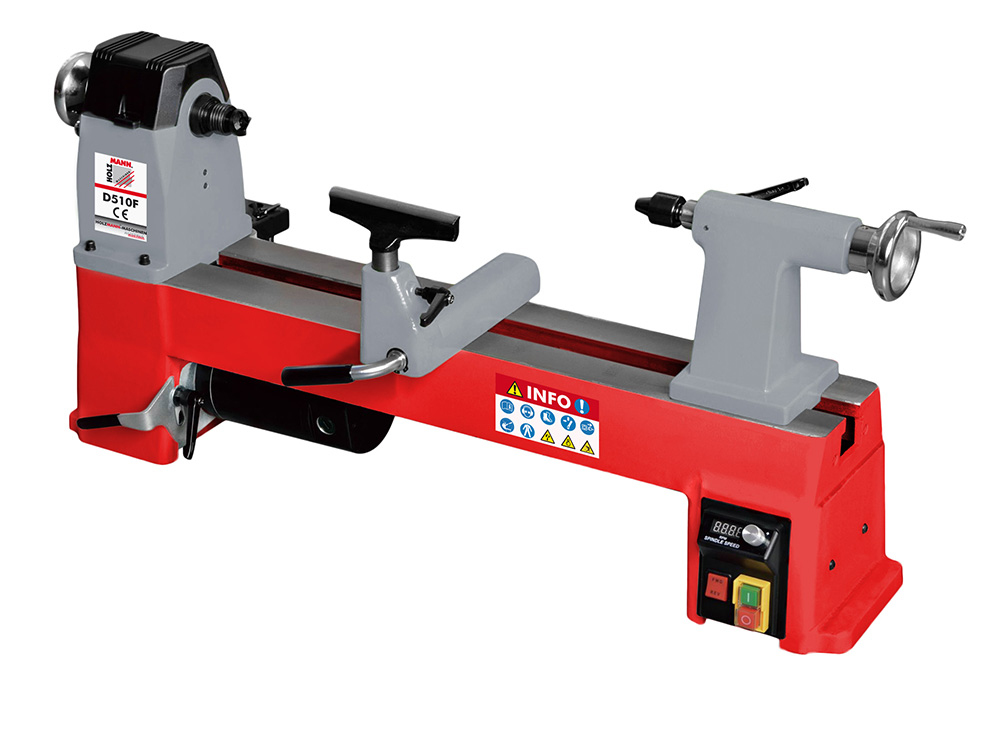

Holzmann wood turning lathe D510F

HOLZMANN
(1)
Preview: D510F Preview: D510F
D510F
D510F

€689.00 * €799.00 * (13.77% Saved)

Prices incl. VAT plus shipping costs

Ready to ship today,
Delivery time appr. 1-3 workdays

  • Order number: D510F
Description Evaluations 1
Description
    motor data voltage 230V / 50 Hz motor power s1 in W 735... more
Close menu
Product information "Holzmann wood turning lathe D510F"


motor data
  • voltage 230V / 50 Hz
  • motor power s1 in W 735

turning machines
  • lathe spindle speed in min-1 (1) 250-720 (2) 550-1650 (3) 1300-3850
  • spindle bore in mm 10
  • spindle nose mount MK2 / MT2
  • tailstock sleeve travel 52
  • distance between centers in mm 510
  • center height in mm 160
  • head stock spindle M33 DIN800

weight
  • gross weight in kg 57
  • net weight in kg 52

packaging
  • packaging width in mm 545
  • packaging length in mm 995
  • packaging height in mm 335

general data
  • EAN code 9120058372377




  • precision tool for professionals, gray cast iron version
  • variable speed control with mini frequency converter, therefore high torque at low speeds
  • high standard of spindle concentricity
  • single hand operation of the tailstock and tool rest with cam lock mechanism
  • metal handles are treated with chrome polish

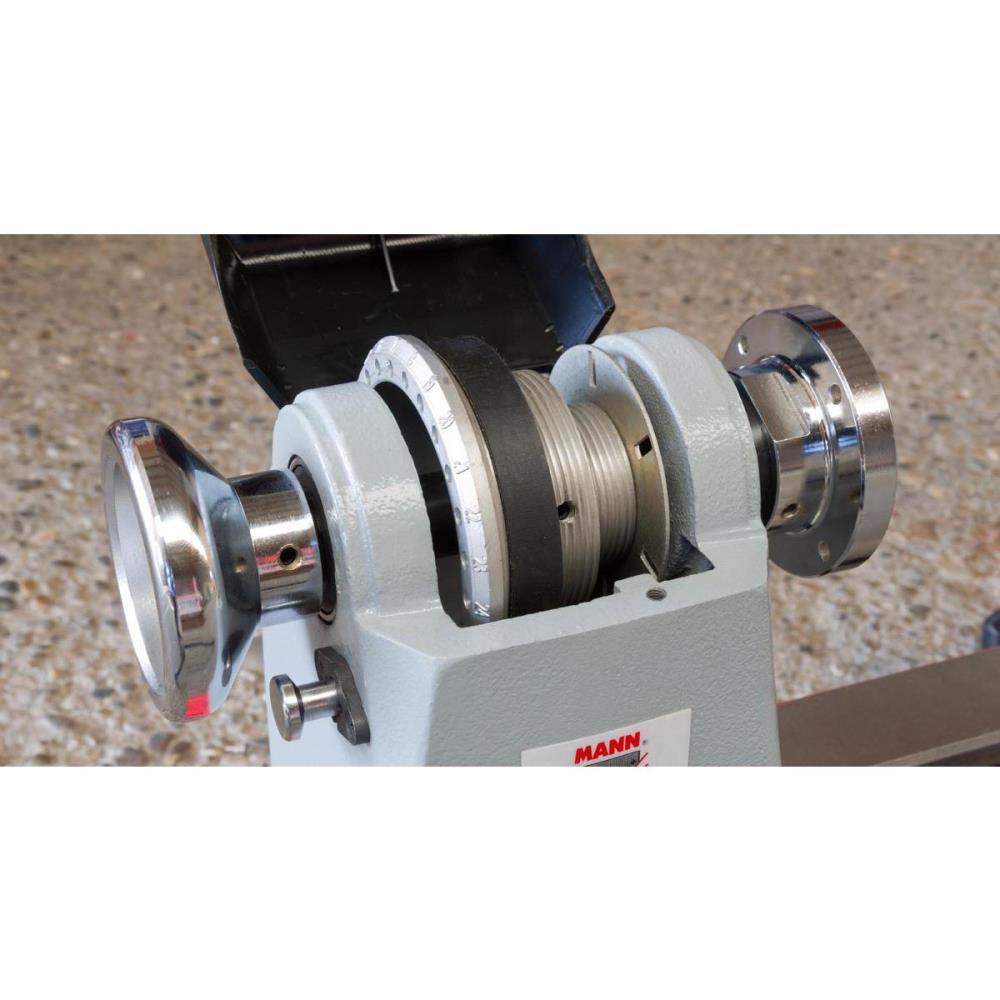

  • spindle fixable all 15 degrees
  • left-right-rotation
  • optional: bed extensions (644 mm) D 510FBVL
  • LCD-speedometer
Related links to "Holzmann wood turning lathe D510F"
Available downloads:
Evaluations 1
Read, write and discuss reviews... more
Close menu
Customer evaluation for "Holzmann wood turning lathe D510F"
From: On: 18 Mar 2019

Erstklassig in allen Punkten

Die Drechselbank kam sehr gut verpackt, im Karton auf einer Palette per Spedition. Die Lieferung erfolgte sehr schnell. Die Drechselbank funktioniert einwandfrei und ist im Vergleich zu meiner bisherigen Baumarkt- Drechselbank um Welten besser. Alles ist leichtgängig und gut zugänglich zu bedienen. Ich werde viel Spaß damit haben.
